Process Modular Skid

Tecnicon Engineering > Process Modular Skid

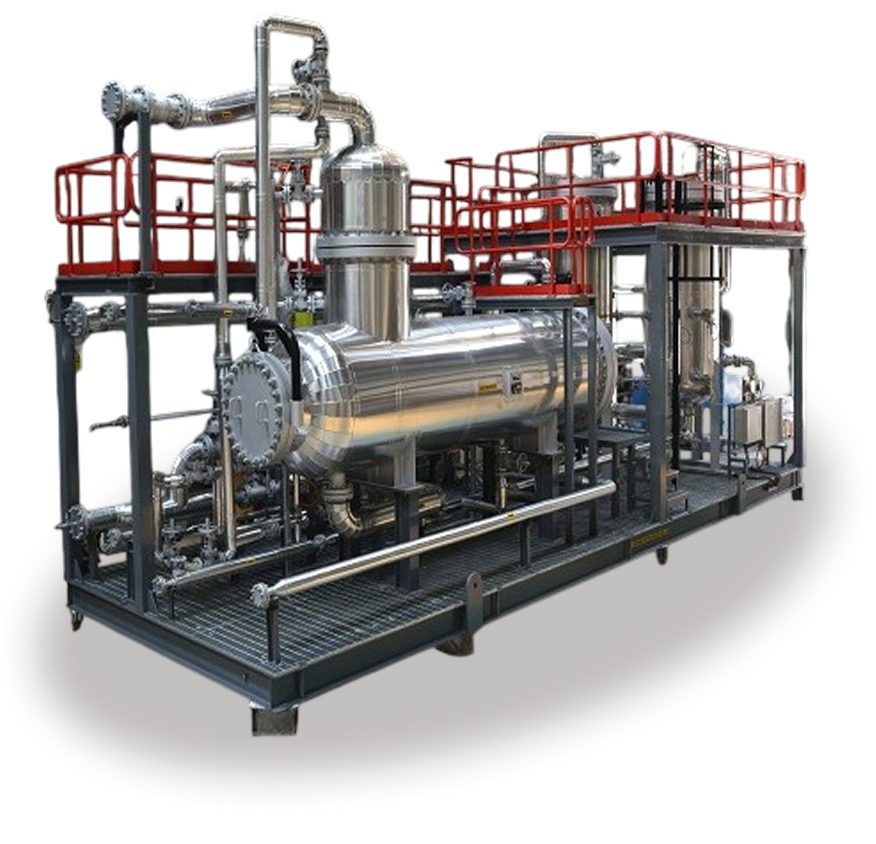

Modular process skid system with heat exchanger, pressure vessel and piping for industrial chemical processing plant

TEPL’s modular process skids are self-contained systems offering fast installation, cost-efficiency, and quality control, streamlining operations and reducing on-site construction time effectively.

Technical Data

  • Type: Skid-Mounted Process Systems (Batch / Continuous).
  • Design Pressure: Up to 25 bar (g).
  • Design Temperature: -40°C to +300°C.
  • Flow Range: As per process requirement.
  • Piping Standards: ASME B31.3 / B31.1.
  • Electrical Classification: Safe Area / Hazardous Area.
  • Instrumentation: Fully integrated with pressure, temperature, flow, and level measurement systems.
  • Control Options: Manual / PLC-Based Automation with SCADA Interface.
Enquiry

Material of Construction

  • Piping and Vessels:
    • SS304 / SS316 / SS316L,
    •  MS (Mild Steel) / CS (Carbon Steel).
    •  Duplex and Super Duplex Stainless Steel,
    •  Hastelloy, Inconel.
  • Structural Frame: Carbon Steel / Stainless Steel / Powder-Coated / Galvanized Finish.
  • Valves and Fittings: SS / CS / Alloy Grades as per process need.
  • Instruments and Controls: Industry-standard brands (Yokogawa, Siemens, ABB, Emerson, etc.).

Key Feature

  • Compact, fully assembled, and factory-tested modular design.
  • Reduced on-site installation time and costs.
  • Designed for plug-and-play integration at the site.
  • Tailor-made configuration as per process needs.
  • High safety standards and compliance with global norms.
  • Easy to transport, relocate, and expand.
    Options for complete automation and remote monitoring.
