Shell & Tube Heat Exchanger

Tecnicon Engineering > Shell & Tube Heat Exchanger

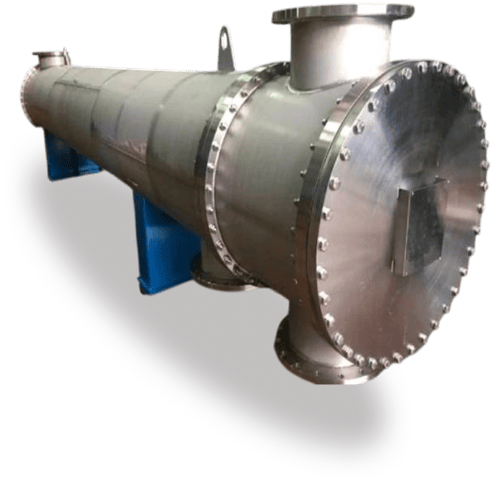

Industrial shell and tube heat exchanger with stainless steel body for chemical plant heat transfer applications

TEPL designs and manufactures high-performance heat exchangers to meet ASME and TEMA standards, delivering precise, safe, and efficient solutions tailored to diverse process and metallurgical needs.

Technical Data

  • Type: Fixed Tube Sheet / Floating Head / U-Tube Bundle.
  • Heat Transfer Area: 1 m² to 500 m² (customized as per requirement).
  • Design Pressure: Up to 100 bar (g).
  • Design Temperature: -20°C to +400°C.
  • Tube Pitch: Square / Triangular / Custom arrangement.
  • Design Standards: TEMA / ASME / API 660 / Customized standards.
Enquiry

Material of Construction

  • Shell: SS304 / SS316 / SS316L / Duplex / Super Duplex / Hastelloy /Inconel / MS (Mild Steel) / CS (Carbon Steel).
  • Tubes: SS304 / SS316 / SS316L / Duplex / Super Duplex / Copper / Cu-Ni / Titanium / Hastelloy / Inconel / MS / CS.
  • Tube Sheets: MS / CS / SS/Duplex / Cladded or Solid.
  • Baffles & Supports: MS / CS / SS / Duplex.
  • Gaskets & Seals: CNAF / PTFE / Metallic.

 Key Features

  • High thermal efficiency and optimized heat transfer design.
  • Suitable for handling high-pressure and corrosive fluids.
  • Easily cleanable designs (removable tube bundle options available).
  • Compact construction for space-saving installations.
  • Energy-efficient operation with robust mechanical design.
