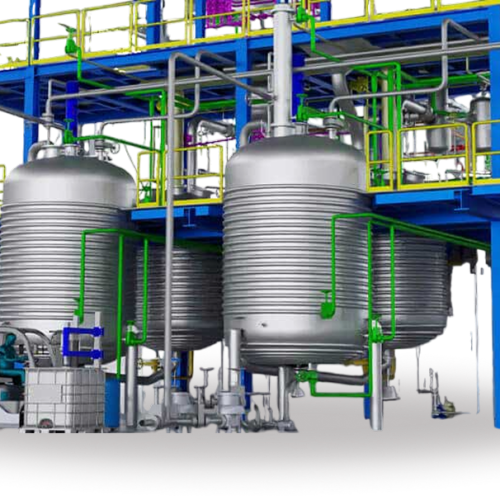

Reactor
TEPL’s process reactors support batch, continuous, and fed-batch operations—offering high productivity, efficient input-output handling, and minimal downtime across diverse industrial applications.
Technical Data
- Type: Jacketed Reactor / Limpet Coil Reactor / Agitated Reactor / Pressure Reactor.
- Capacity Range: 50 Liters to 50,000 Liters (customizable).
- Design Pressure: Full Vacuum to 50 bar (g).
Design Temperature: -20°C to +300°C. - Agitation System: Anchor, Paddle, Turbine, Helical, or Customized Agitators.
- Drive Type: Mechanical Seal or Stuffing Box.
- Heating / Cooling Options: Steam, Hot Oil, Water, or Electrical Heating.
- Testing: Hydrotest, Radiography, Ultrasonic Testing, DPT, and Hardness Testing.
Material of Construction
- Shell, Jacket & Limpet:
- Stainless Stell (SS304 / SS316 / SS316L),
- Duplex / Super Duplex Stainless Steel,
- Hastelloy C22 / C276, Inconeln
- MS (Mild Steel) / CS (Carbon Steel)
- Agitator & Shaft: SS304 / SS316 / Duplex
Steel / Alloy Materialsn - Seals & Gaskets: PTFE / CNAF / Metallic
Gasketsn - Internal Finish: Mirror Finish / Matt Finish /
Pickling & Passivation.
Key Features
- Highly efficient heat transfer through optimized jacket/coiling.
- Agitation systems designed for varying viscosities and reaction needs.
- Corrosion-resistant materials for enhanced durability.
- Compliance with ASME, GMP, and other relevant standards.
- Easy maintenance with manholes, nozzles, and access ports.
